Standoff Strut Mount Metal Routing Clamps HDG Surface

Shanghai KOKA Industrial Co., Ltd.
Contact Now

Standoff Strut Mount Metal Routing Clamps HDG Surface

Brand Name : KOKA

Model Number : KK-2025

Certification : ISO9001-2015

Place of Origin : Shanghai

MOQ : 1000PCS

Price : Sent email to us

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 999999/pcs/month

Delivery Time : 10-25 work days

Packaging Details : Pallet Packing,customized requirement

Material : Carbon Steel/ss304/ss316/Copper/Aluminum

Surface Treatment : Zinc Plated /Galvanized/HDG

Specification : 1/4" 1/2" 1-1/4"

Thickness : 1.5-3.0MM

Service : OEM ODM

Sample : Available

Package : Carton Box

Contact Now

Standoff Strut-Mount Metal Routing Clamps

Products:Strut Clamp

Features: Being fasteners for pipe lines such as heating, sanitary and waste water pipes;to walls, ceilings and floors.
Side screws are protected against loss during assemble with the help of plastic washers

Applications:

Used for mounting of pipes to the walls ( vertical / horizontal ) , ceilings and floors
For Suspending Stationary Non-Insulated Copper Tubing Lines

Part No. Pipe Size (Inch) OD Size (Inch) OD Size (mm) Finish
EMT
KK-2025 3/8” 0.577" 14.7 EG/HDG/SS304/SS316
KK-2026 1/2” 0.706" 17.9 EG/HDG/SS304/SS316
KK-2028 3/4” 0.922" 23.4 EG/HDG/SS304/SS316
KK-2030 1” 1.163" 29.5 EG/HDG/SS304/SS316
KK-2032 1-1/4” 1.510" 38.4 EG/HDG/SS304/SS316
KK-2034 1-1/2” 1.740" 44.2 EG/HDG/SS304/SS316
KK-2038 2” 2.197" 55.8 EG/HDG/SS304/SS316
UNIVERSAL
KK-2055 3/8”   16.4 EG/HDG/SS304/SS316
KK-2056 1/2”   19.5 EG/HDG/SS304/SS316
KK-2058 3/4”   24.9 EG/HDG/SS304/SS316
KK-2060 1”   31.4 EG/HDG/SS304/SS316
KK-2062 1-1/4”   40.2 EG/HDG/SS304/SS316
KK-2064 1-1/2”   46.2 EG/HDG/SS304/SS316
KK-2068 2”   58.0 EG/HDG/SS304/SS316
RGD
KK-2125 3/8” 0.675" 18.0 EG/HDG/SS304/SS316
KK-2126 1/2” 0.840" 21.3 EG/HDG/SS304/SS316
KK-2128 3/4” 1.050" 26.7 EG/HDG/SS304/SS316
KK-2130 1” 1.315" 33.4 EG/HDG/SS304/SS316
KK-2132 1-1/4” 1.660" 44.2 EG/HDG/SS304/SS316
KK-2134 1-1/2” 1.900" 48.3 EG/HDG/SS304/SS316
KK-2138 2” 2.375" 60.3 EG/HDG/SS304/SS316
KK-2142 2-1/2” 2.875" 73.0 EG/HDG/SS304/SS316
KK-2146 3” 3.500" 88.9 EG/HDG/SS304/SS316
KK-2150 3-1/2” 4.000" 101.6 EG/HDG/SS304/SS316
KK-2154 4” 4.500" 114.3 EG/HDG/SS304/SS316
KK-2162 5” 5.563" 141.3 EG/HDG/SS304/SS316
KK-2170 6” 6.625" 168.3 EG/HDG/SS304/SS316
KK-2174 8” 8.625" 216.3 EG/HDG/SS304/SS316

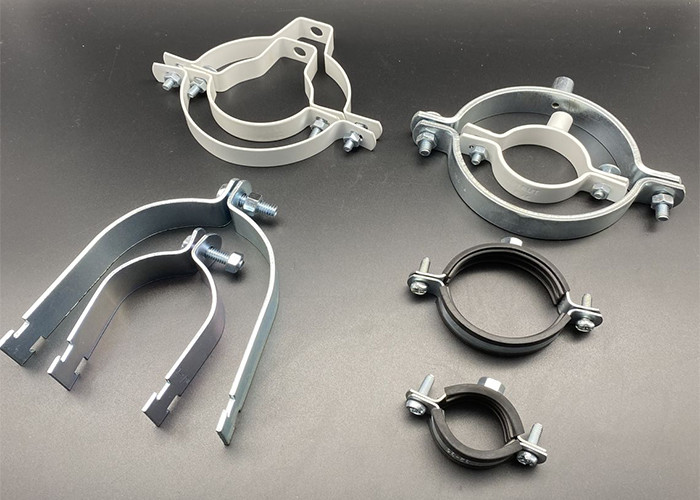

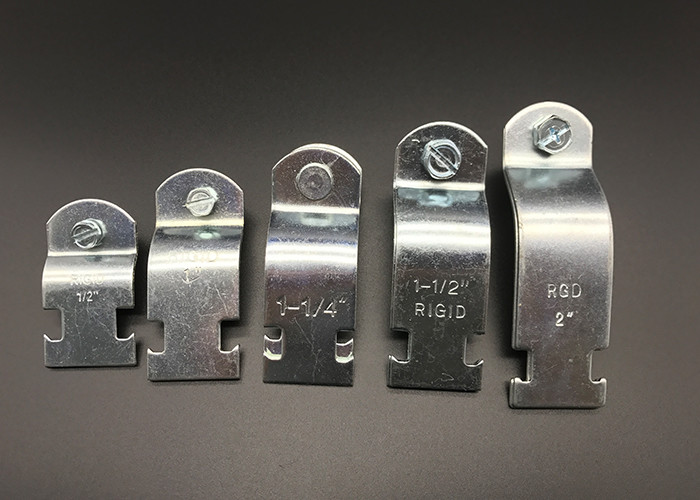

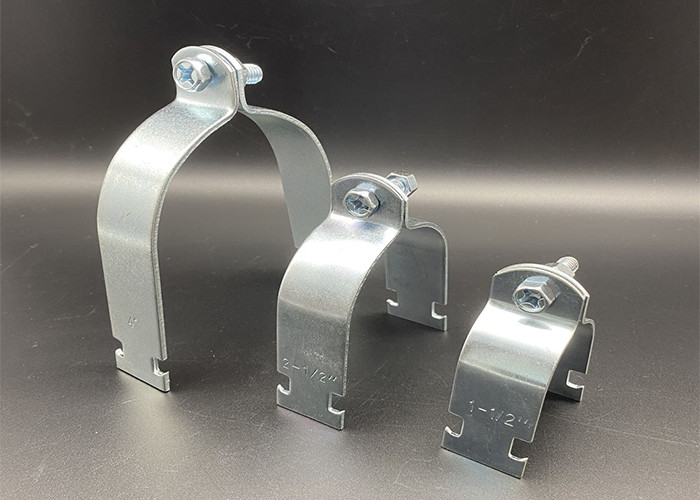

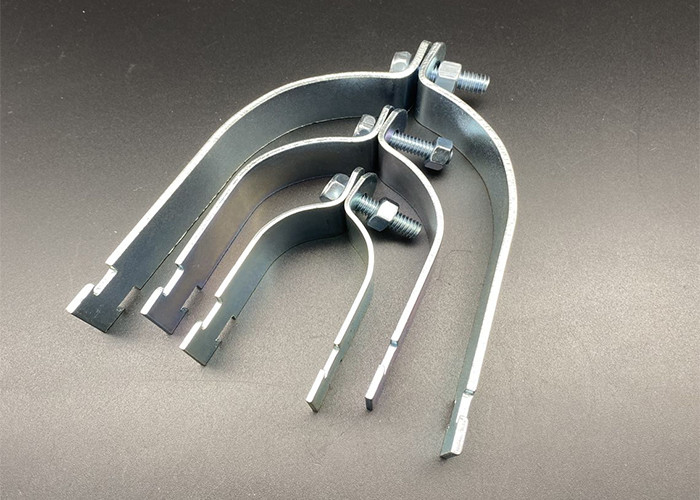

Product Show:

Standoff Strut Mount Metal Routing Clamps HDG Surface Standoff Strut Mount Metal Routing Clamps HDG SurfaceStandoff Strut Mount Metal Routing Clamps HDG Surface Standoff Strut Mount Metal Routing Clamps HDG Surface

About KOKA:

Shanghai KoKa Industrial Co.,Ltd is professional China Products Manufacturers and Products Suppliers. We have been devoting ourselves in the products of construction,we have cable management systems (CMS) & Strut channel systems & Pipe support system and HVAC systems solutions provider and factory.

Based on over 15 years of engineering experience to the subways, airports, shopping malls, food, beverage, construction, electricity, new energy, petrochemical, mechanical engineering and pharmaceutical industries, the KOKA production has become a respected and specified brand to some of the world's most recognised organisations.

KOKA is the ideal solution for cable support system.

KOKA takes pride in building long term partnerships with clients that ensure a superior service and provider highest quality products.

KOKA products are known throughout the industry as being hygienic, high quality and to offer exceptional value.

KOKA offer an extensive range of products ex-stock and can therefore process your orders with a short lead time, with the majority of parts available on a next day delivery.

KOKA specialises in manufacturing the following products in SS304 , SS316 ,carbon steel,Special plastic .

KOKA to provide personalized demand and global sourcing solutions for global customers,always adhere to the product quality first,continuous development and optimization design, with user-friendly, simple installation to satisfied customer needs, and strive to reduce customer costs, to adapt to the global competition, With global customers to cope with the complex economic environment, to achieve common value growth of the target.

Package:

Standoff Strut Mount Metal Routing Clamps HDG Surface Standoff Strut Mount Metal Routing Clamps HDG Surface

Standoff Strut Mount Metal Routing Clamps HDG Surface

FAQ:

Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:

1: what material(carbon steel/Q235/SS304/SS316)

2 : what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
Q6: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 20-25days.
